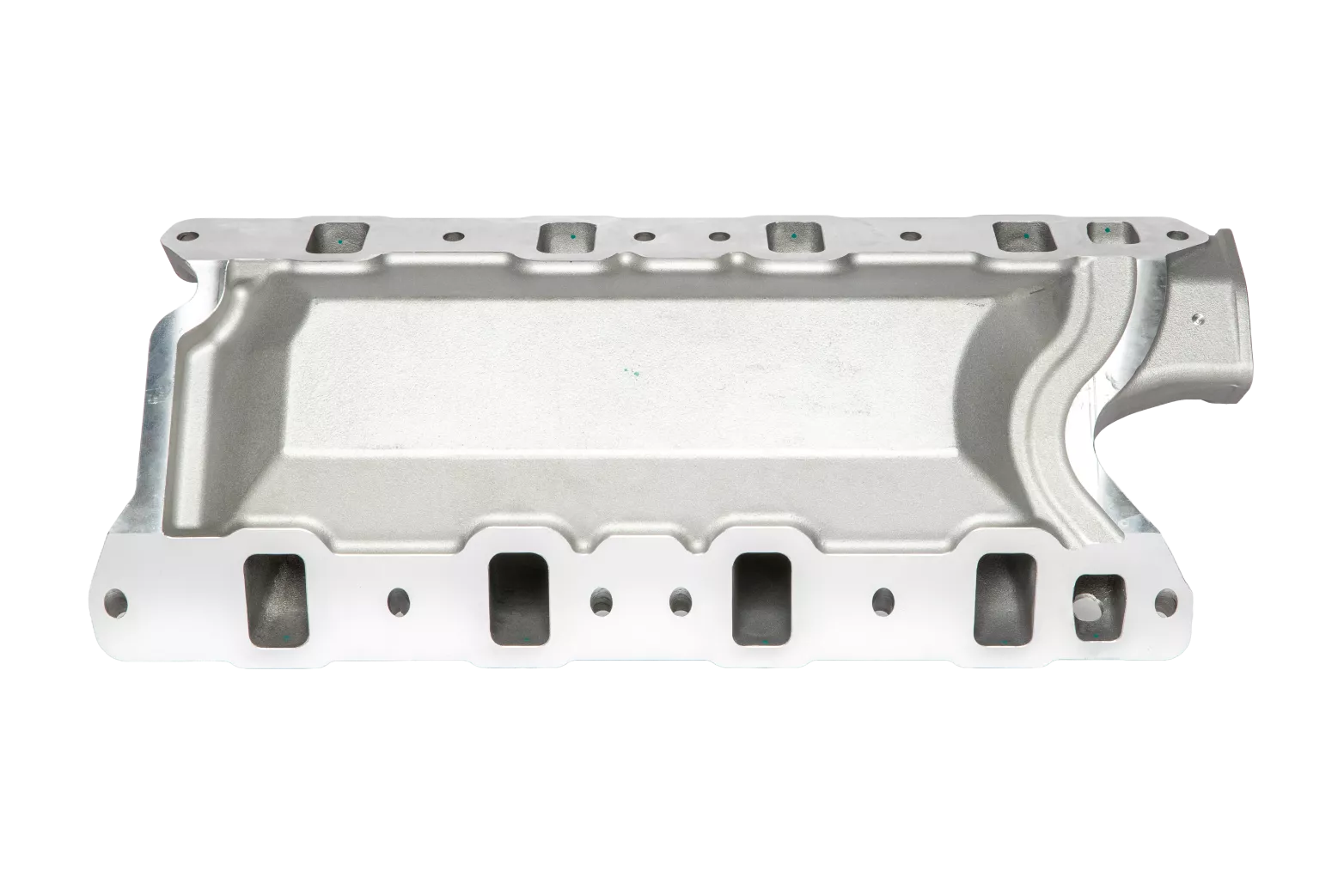

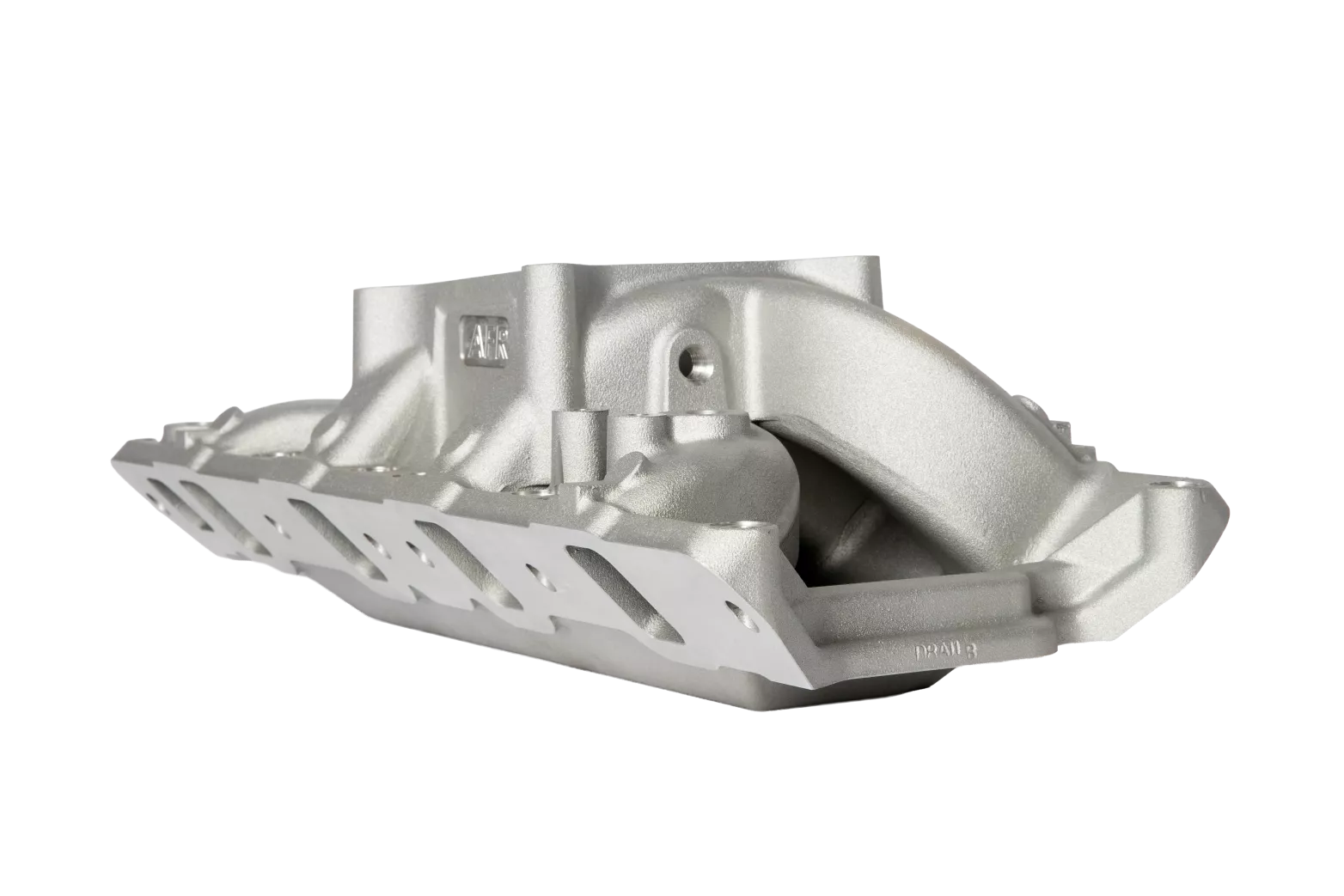

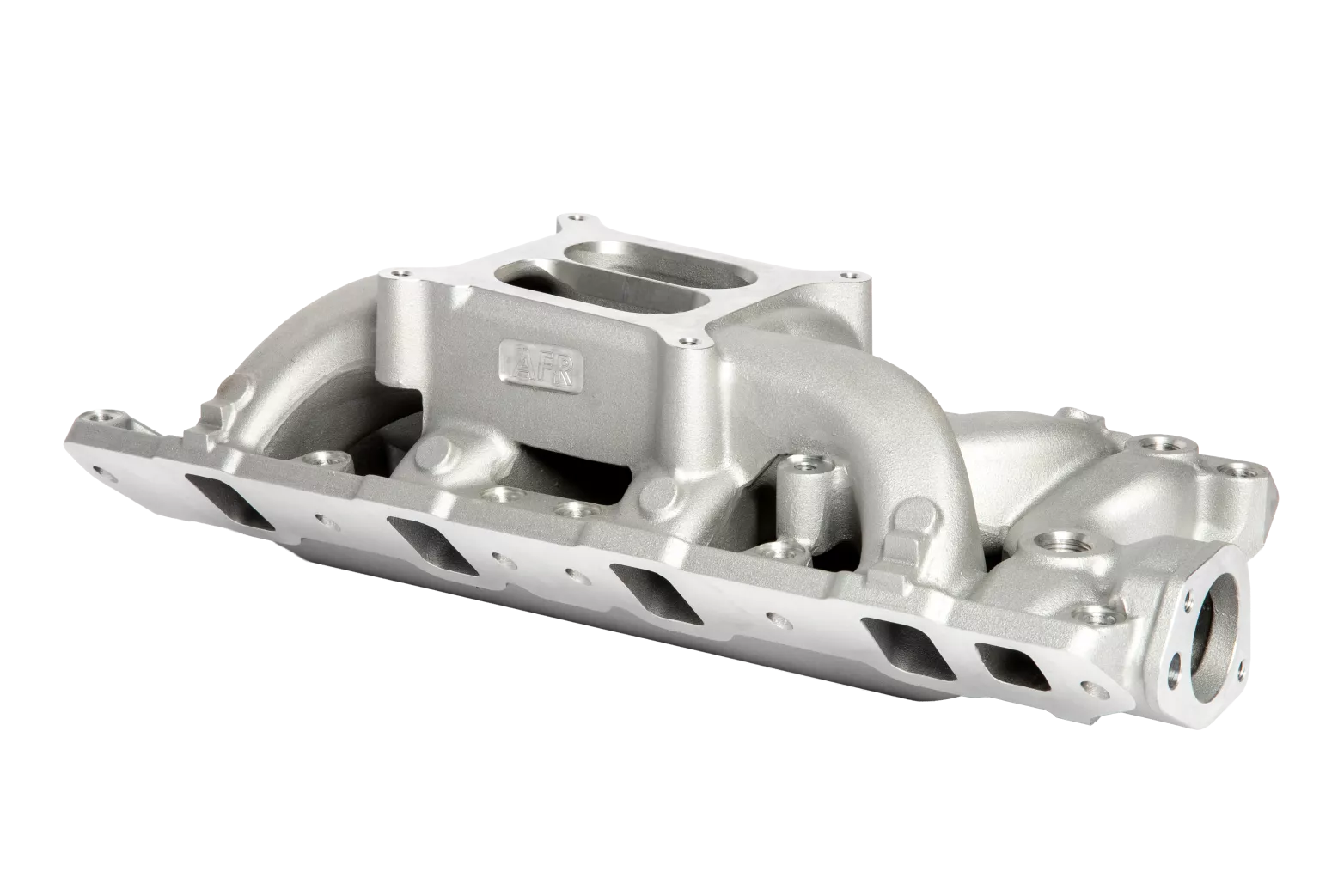

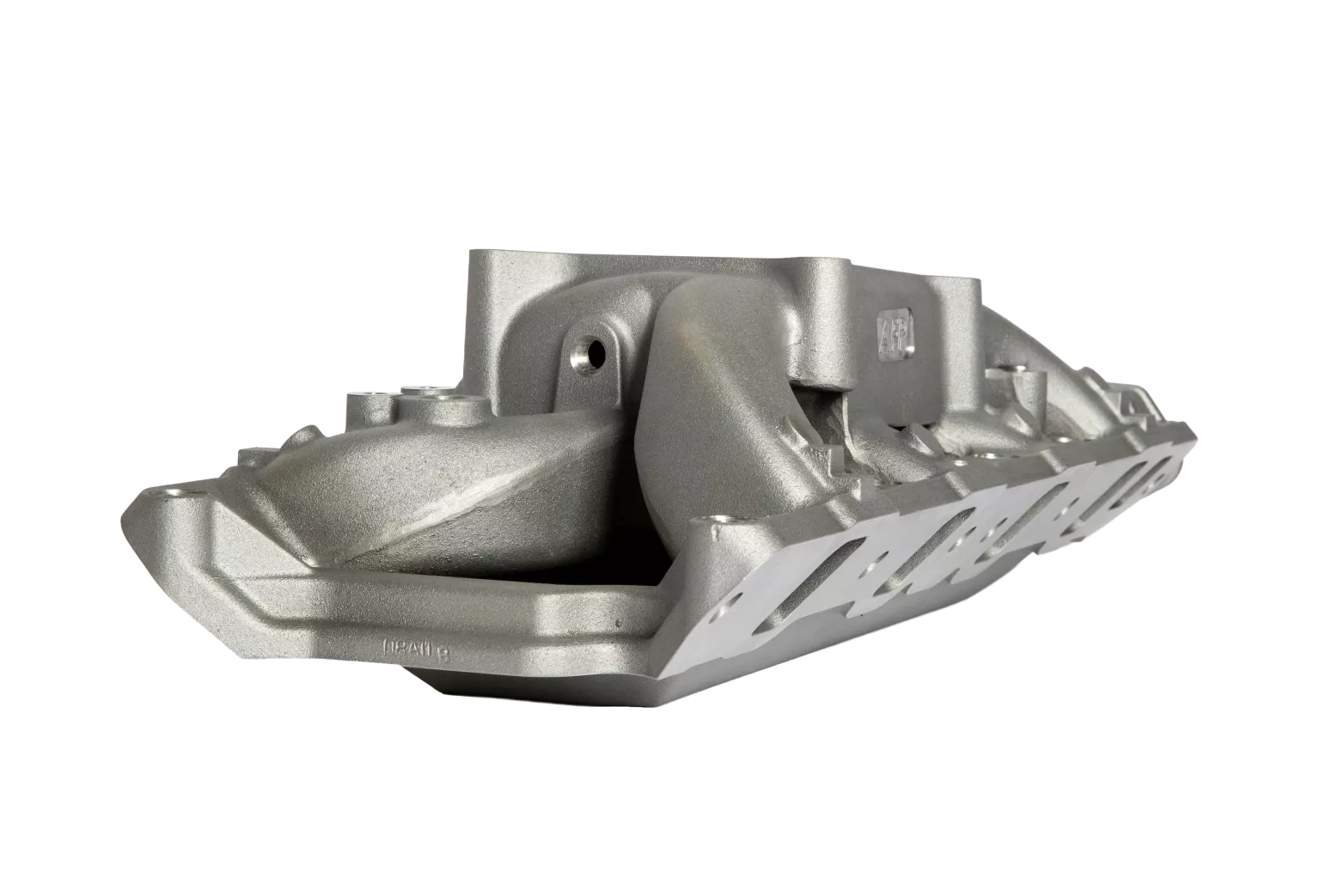

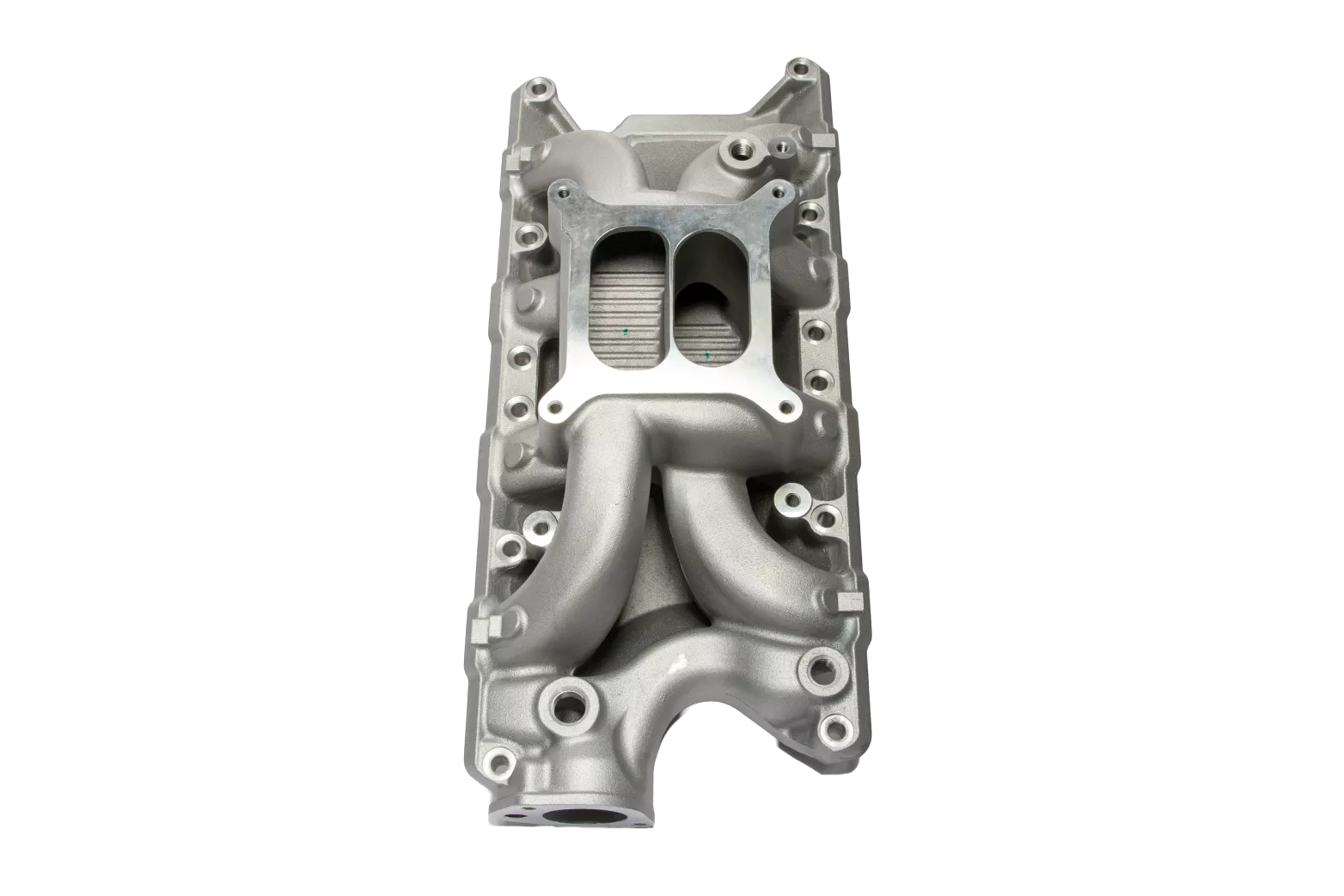

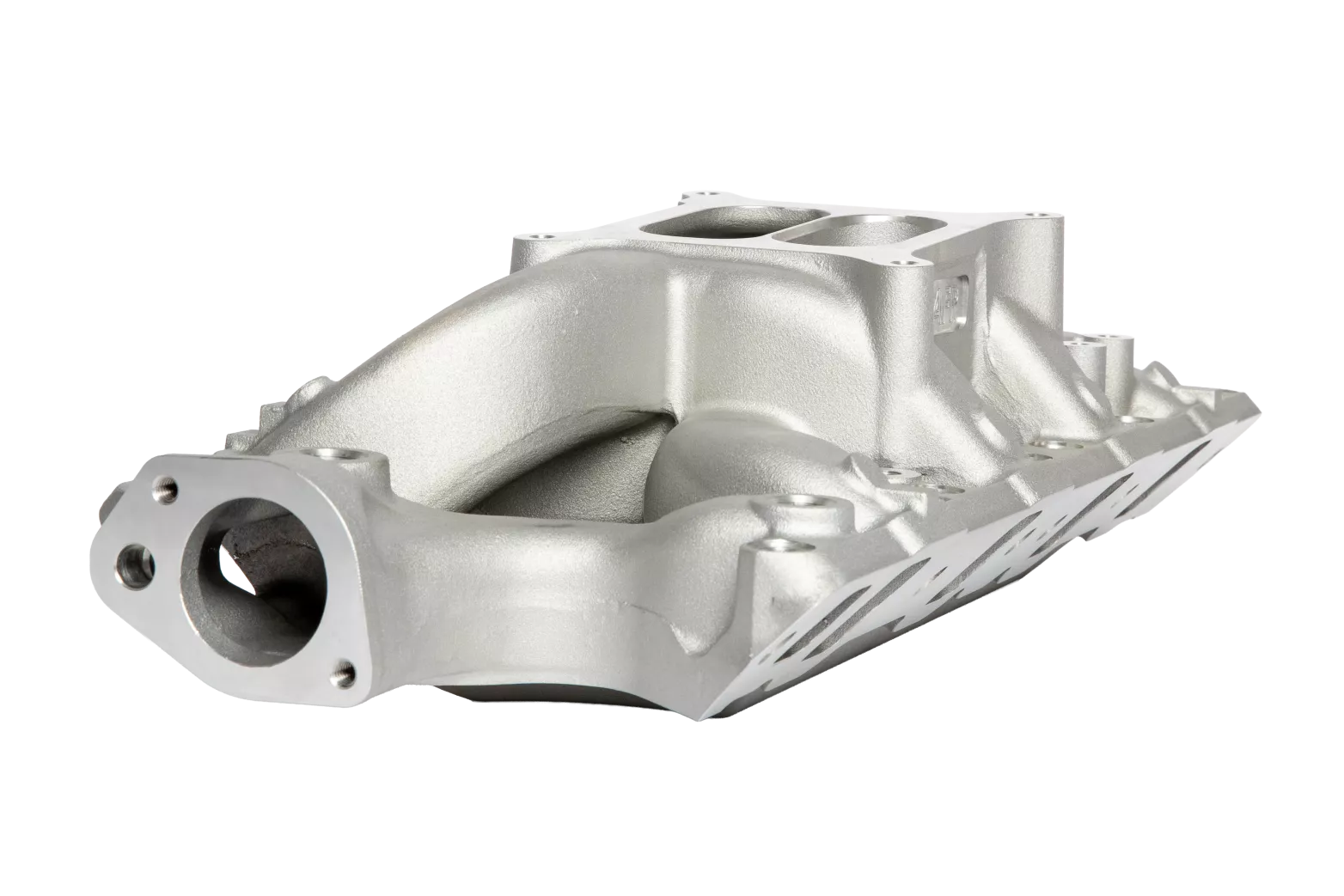

Designed for 8.2-deck Small Block Ford engines, this AFR-branded dual plane intake delivers excellent street performance and throttle response for 302, 331, and 347 Windsor combinations. The dual plane runner design enhances low- and mid-range torque while maintaining strong airflow for higher RPM operation. Ideal for street performance and street/strip builds, it pairs perfectly with AFR Small Block Ford cylinder heads to complete a high-performance Windsor top end.
Specifications & Features
| Application | 289-302 & 331/347 Windsor 8.2 deck |
| Basic Operating RPM Range | 1500-6000 |
| Material | Cast Aluminum |
| Carb Flange Height | 5.13" at rear of carb flange, 4.79" at front, both to China wall face, 4 degree flange |
| Manifold Type | Dual Plane |
| Port Dimensions | 1.86" H x 1.07" W x 1/4 Radius |
| Port Locations | Stock |
| Compatible with | 165-185 Renegade & 185 Enforcer, May require port matching for optimum fit. |
| Carb Flange | 4150 /4160 |
| Intake Gasket | 6911 |
| Manifold Bolt/Stud | 6301 & 6302 |
