• 8mm Stem Diameter
• Solid Stem
• Stainless Steel
• Bead Lock Valve Keepers
• 1.600” x 4.900” O.A.L.
• For use with AFR Mongoose LS1 Cylinder Heads
• (1 Piece) or (Set of 8)

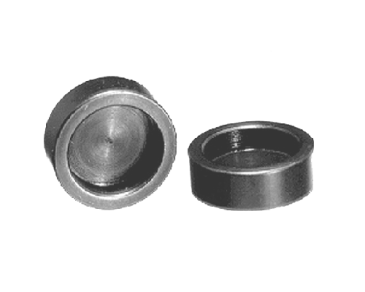

• Lash Cap 11/32"
• BBC/BBF Only
• (1 Piece) or (Set of 16)

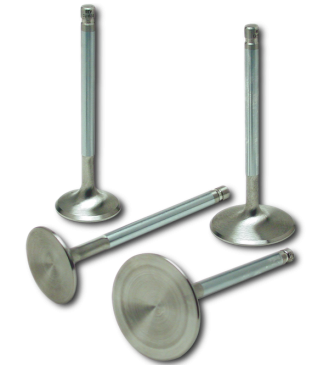

• SBC/SBF 8mm Intake Valve
• 2.080 x 4.900 OAL
• (1 Piece) or (Set of 8)

• 8mm Stem Diameter
• Inconel Exhaust Valve
• 1.600 X 5.030 O.A.L.
• Upgrade for SBC/SBF Exhaust Valves
• (1 Piece) or (Set of 8)

• BBC Stainless Steel High Perf. Valve
• 1 pc. chrome stem
• swirl polished
• 2.190 11/32 Stem
• (1 Piece) or (Set of 8)

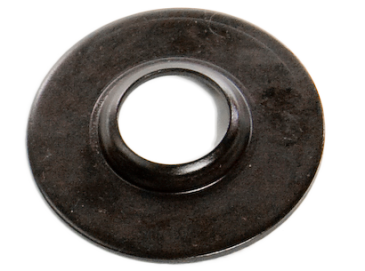

• I.D. Spring Seat 1.550 OD x .730 OD x .570 ID
• Fits Springs 8002 & 8016 for SBC/SBF
• (1 Piece) or (Set of 16)

• Lash cap 8MM
• SBF, SBC, and LSX
• (1 Piece) or (Set of 16)

• SBC/SBF 8mm Intake Valve
• 2.100 x 5.000 OAL
• (1 Piece) or (Set of 8)

• BBC Stainless Steel High Performance Valve
• 1pc. Chrome stem
• Swirl Polished
• 11/32" Stem Diameter
• 2.350" x 5.500" OAL
• (1 Piece) or (Set of 8)

• 8mm Intake Valve replacements for SBC
• 2.125 x 5.000 OAL
• Stainless Steel
• (1 Piece) or (Set of 8)

• LSX Solid Stem Valve 2.165
• (1 Piece) or (Set of 8)

• I.D. Spring Seat 1.550 OD x .705 OD x .570 ID
• Fits Springs 8000 & 8001 for SBC/SBF
• (1 Piece) or (Set of 16)

AFR 7248 valves come standard in 220cc Small Block Ford cylinder heads.

• 8mm Stem Diameter
• Bead Lock Valve Keepers
• 1.570” x 5.030” O.A.L.
• For use with AFR SBF 220cc
• (1 Piece) or (Set of 8)

AFR 8517 10° titanium retainer is for use with spring AFR 8014 and requires AFR 9005 bead lock keepers.

(1 Piece) or (Set of 16)

AFR's 8016 spring is built for use with solid flat tappet cam shafts operating up to 7200 RPM.

• 1.550” OD Solid Flat Tappet
• 140 lbs. on seat
• .650” max lift
• Max RPM 7200-7400
• Steel Retainer: 8511
• Titanium Retainer: 8505
• SBC/SBF Valve Lock: 9009
• BBC Valve Lock: 9005
• BBF Valve Lock: 9010
• (1 Piece) or (Set of 16)

AFR's 8020 spring is designed for use with hydraulic flat tappet cam shafts up to .550" lift.

• 1.437” OD Hydraulic Flat Tappet
• 125 lbs. on seat
• .550” max lift
• Max RPM 6100-6300
• Steel Retainer: 8510
• SBC/SBF Valve Lock: 9009
• (1 Piece) or (Set of 16)

• Requires AFR #6613 Valve Stem Seal

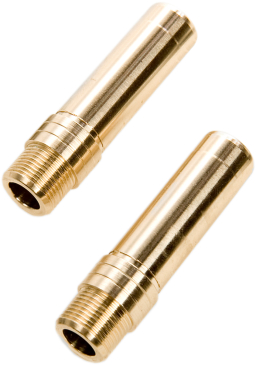

• AFR BBC Exhaust Guide
• AFR BBF Intake & Exhaust Guide
• (1 Piece) or (Set of 8)

• Requires AFR #6613 Valve Stem Seal
• AFR BBC Intake Guide
• (1 Piece) or (Set of 8)

AFR 7212 valves come standard in 260cc LS3 cylinder heads.

• 8mm Stem Diameter
• Bead Lock Valve Keepers
• 1.600” x 5.200” O.A.L.
• For use with AFR LS3 260cc
• (1 Piece) or (Set of 8)

AFR 7214 valves come standard in 260cc LS3 cylinder heads.

• 8mm Stem Diameter
• Bead Lock Valve Keepers
• 2.165” x 5.195” O.A.L.
• For use with AFR LS3 260cc
• (1 Piece) or (Set of 8)

AFR 7213 valves comes as an upgrade in 260cc LS3 cylinder heads.

• 8mm Stem Diameter
• Bead Lock Valve Keepers
• 1.600” x 5.200” O.A.L.
• Inconel Exhaust for boosted motors
• For use with AFR LS3 260cc
• (1 Piece) or (Set of 8)

• Requires AFR #6612 Valve Stem Seal
• AFR LS3 Intake Guide
• (1 Piece) or (Set of 16)

AFR 7551 valves come standard in 280cc & 295cc BBF cylinder heads.

• 11/32 Stem Diameter
• Bead Lock Valve Keepers
• 2.250” x 5.245” O.A.L.
• For use with AFR BBF 280cc & 295cc
• (1 Piece) or (Set of 8)

AFR 7552 valves come standard in 315cc BBF cylinder heads.

• 11/32 Stem Diameter
• Bead Lock Valve Keepers
• 2.300” x 5.245” O.A.L.
• For use with AFR BBF 315cc
• (1 Piece) or (Set of 8)

AFR 7553 exhaust valves come standard in 280cc, 295cc & 315cc BBF cylinder heads.

• 11/32 Stem Diameter
• Bead Lock Valve Keepers
• 1.760” x 5.050” O.A.L.
• For use with AFR BBF 280cc, 295cc & 315cc
• (1 Piece) or (Set of 8)

• AFR Adjustable Guide Plates
• BBF
• (1 Piece) or (Set of 8)

AFR 7555 valves comes as an upgrade option for AFR BBF Exhaust Valves.

• 11/32 Stem Diameter
• Bead Lock Valve Keepers
• 1.760” x 5.050” O.A.L.
• Inconel Exhaust for boosted motors
• For use with AFR BBF
• (1 Piece) or (Set of 8)

• I.D. Spring Seat 1.650 OD x .850 OD x .570 ID
• Fits Springs 8031 for SBC/SBF
• (1 Piece) or (Set of 16)

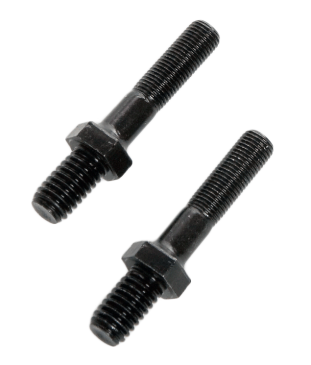

• 3/8" Rocker Studs +.250 Length, ARP #134-7104
• (1 Piece) or (Set of 16)

• High Quality ARP Stud
• BBC Intake 7/16" Rocker Stud Replacement
• BBF Intake & Exhaust 7/16" Rocker Stud replacement
• (1 Piece) or (Set of 8) or 16
