AFR’s 180cc "Street" heads are a cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6000 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. Component upgrade and machining options are available to customize AFR Heads to your specific build (see pg. 45). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes on pg. 50 for additional information.
| Included Components | |

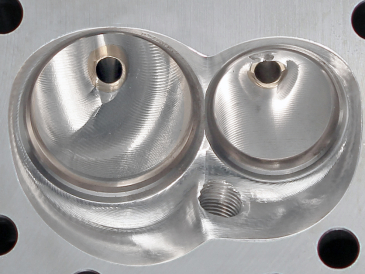

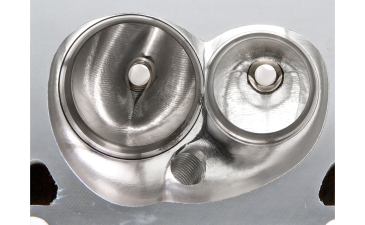

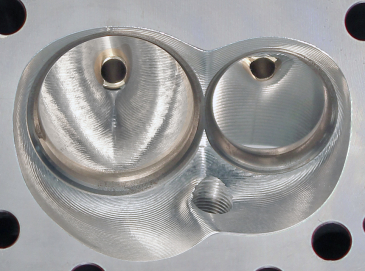

| 100% CNC Ported Combustion Chambers | |

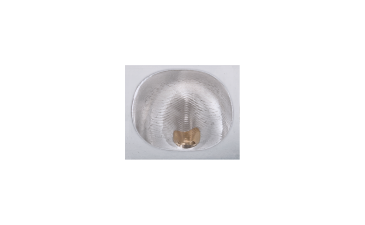

| 90% CNC Ported Exhaust Ports | |

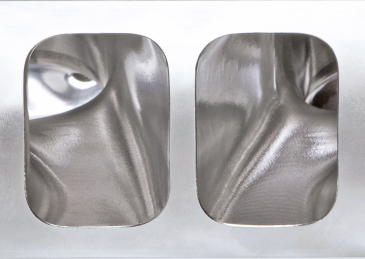

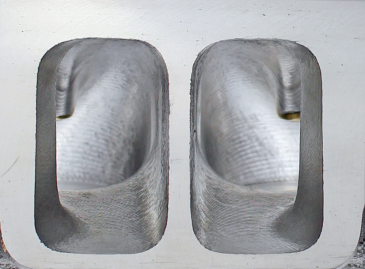

| 100% CNC Ported Intake Ports | |
|
Competition 5-Angle Valve Job |
|

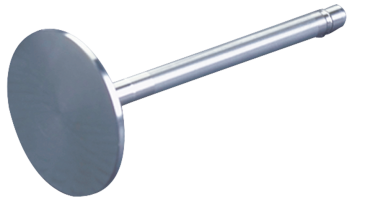

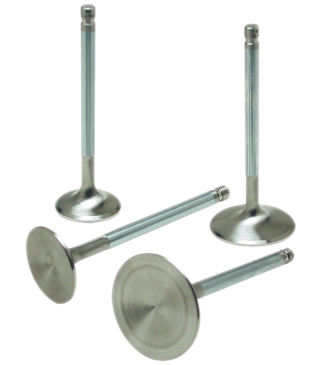

| 8mm Bead Lock Intake Valve, 2.020" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams |
|

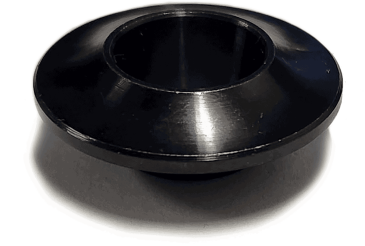

| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |

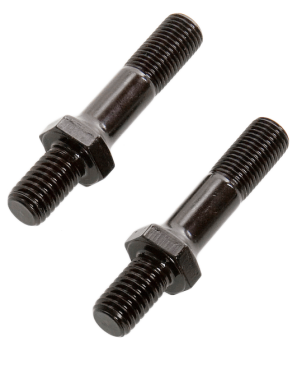

| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 180cc Street Head Flow Chart | ||||
| .200 | .300 | .400 | .500 | |
| Int | 138 | 198 | 240 | 260 |
| Exh | 110 | 158 | 190 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060"; intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
180cc
|
| Intake Port Dimension |
2.050" H x 1.250" W x 5/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120 thick intake gasket. | |
| Minimum Cross Sectional Area |
1.810 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
D-250-2
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR’s 180cc "Street" heads are a cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6000 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. Component upgrade and machining options are available to customize AFR Heads to your specific build (see pg. 45). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes on pg. 50 for additional information.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 90% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-Angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams |
|
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 180cc Street Head Flow Chart | ||||
| .200 | .300 | .400 | .500 | |
| Int | 138 | 198 | 240 | 260 |
| Exh | 110 | 158 | 190 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060"; intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
180cc
|
| Intake Port Dimension |
2.050" H x 1.250" W x 5/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120 thick intake gasket. | |
| Minimum Cross Sectional Area |
1.810 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
D-250-2
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR`s 195cc "Street" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250- 2.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 90% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.050" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams |
|
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 195cc Street Head Flow Chart | |||||
| .200 | .300 | .400 | .500 | .550 | |
| Int | 146 | 201 | 247 | 275 | 280 |
| Exh | 119 | 166 | 197 | 213 | 218 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.110" H x 1.265" W 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
1.905 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR`s 195cc "Street" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250- 2.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 90% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.050" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams |
|
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 195cc Street Head Flow Chart | |||||
| .200 | .300 | .400 | .500 | .550 | |
| Int | 146 | 201 | 247 | 275 | 280 |
| Exh | 119 | 166 | 197 | 213 | 218 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.110" H x 1.265" W 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
1.905 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 195cc "Competition" heads are the preferred choice for a more aggressive street or street/strip build. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500-6800 RPM.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.270" OD Hydraulic Dual Valve Spring, 155 lbs. on seat, .650" maximum lift, Max RPM 7000-7200 |
|
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 195cc Competition Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 151 | 211 | 260 | 293 | 304 | 308 |
| Exh | 125 | 172 | 207 | 224 | 229 | 233 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.185" H x 1.265" W 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.460" H x 1.565" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
1.920 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles. |
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold | |
| Suggested Manifold | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 195cc "Competition" heads are the preferred choice for a more aggressive street or street/strip build. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500-6800 RPM.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.270" OD Hydraulic Dual Valve Spring, 155 lbs. on seat, .650" maximum lift, Max RPM 7000-7200 |
|
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 195cc Competition Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 151 | 211 | 260 | 293 | 304 | 308 |
| Exh | 125 | 172 | 207 | 224 | 229 | 233 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.185" H x 1.265" W 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.460" H x 1.565" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
1.920 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles. |
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| Head Gasket, 400cid Fel-Pro #1014 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold | |
| Suggested Manifold | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|

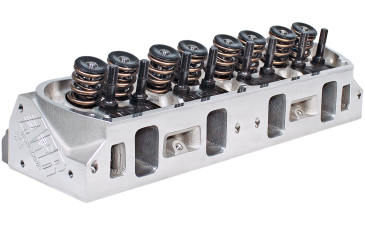

Our largest and highest flowing head for the small block ford is the best in-line head money can buy. Featuring 220cc intake runners, this package is recommended for race applications and radical "Pro-Street" builds. Available with 58cc or 72cc combustions chambers, you can further customize your setup with our various components upgrades and available machining options.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve 2.100" x 5.000" O.A.L. | |
| 8mm Bead Lock Exhaust Valve 1.570" x 5.030" O.A.L. | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 | |
| 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 220cc Street Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .600 | .700 | .800 | |
| Int | 135 | 194 | 258 | 295 | 315 | 325 | 331 |
| Exh | 121 | 171 | 215 | 238 | 245 | 249 | 250 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.155", 3/4" radius plate exhaust, 1 7/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
220cc
|
| Intake Port Dimension |
2.265" H x 1.325" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.445" H x 1.595" W
|
| Exhaust Port Location |
Raised .375"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.580" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 55cc Max (from 58cc); 69cc Max (from 72cc);
|
| Angle Mill |
.009" per 52cc Max (from 58cc); 66cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.345 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, Fel-Pro #1262R | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
Super Vic or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3922 - Race Gas
|
| Spark Plug Starting Range |
Autolite 3924 - Pump Gas
|
Our largest and highest flowing head for the small block ford is the best in-line head money can buy. Featuring 220cc intake runners, this package is recommended for race applications and radical "Pro-Street" builds. Available with 58cc or 72cc combustions chambers, you can further customize your setup with our various components upgrades and available machining options.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve 2.100" x 5.000" O.A.L. | |
| 8mm Bead Lock Exhaust Valve 1.570" x 5.030" O.A.L. | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 | |
| 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 220cc Street Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .600 | .700 | .800 | |
| Int | 135 | 194 | 258 | 295 | 315 | 325 | 331 |
| Exh | 121 | 171 | 215 | 238 | 245 | 249 | 250 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.155", 3/4" radius plate exhaust, 1 7/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
220cc
|
| Intake Port Dimension |
2.265" H x 1.325" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.445" H x 1.595" W
|
| Exhaust Port Location |
Raised .375"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.580" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 55cc Max (from 58cc); 69cc Max (from 72cc);
|
| Angle Mill |
.009" per 52cc Max (from 58cc); 66cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.345 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, Fel-Pro #1262R | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
Super Vic or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3922 - Race Gas
|
| Spark Plug Starting Range |
Autolite 3924 - Pump Gas
|

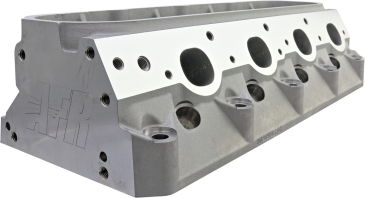

Our 230cc LS1 MONGOOSE cylinder heads are recommended for aggressive street or street/strip builds with displacements up to 427 cubic inches operating at or below 7200 RPM. Capable of flowing 328 CFM at 0.650" lift with a 4.000" bore size.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 230cc Small Bore Competition Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 157 | 224 | 272 | 311 | 320 | 324 |
| Exh | 129 | 183 | 225 | 244 | 248 | 252 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 3.900", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| 230cc Large Bore Competition Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 158 | 230 | 282 | 320 | 325 | 328 |
| Exh | 129 | 183 | 225 | 244 | 248 | 252 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 3.900", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
230cc
|
| Intake Port Dimension |
3.250"H x 1.115"W x5/16 top 3/8 bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
86cc
|
| Exhaust Port Dimension |
1.385" H x 1.695" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
62cc, 65cc, or 72cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.510" O.D
|
| Max Valve Spring Pocket Machining |
1.525" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
3.900"
|
| Flat Mill - 62cc chamber |
.006" per cc 58cc Maximum
|
| Flat Mill - 72cc chamber |
.006" per cc 67cc Maximum
|
| Minimum Cross Sectional Area |
2.425 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Gasket for Small Bore |
Cometic 3.930 .040" or AFR #6846
|
| Head Gasket for Large Bore |
Cometic 4.160 .040" or AFR #6848
|
| Head Bolts (97-03) |
ARP 134-3609 or AFR #6330
|
| Head Studs (97-03) |
ARP 234-4110 or AFR #6331
|
| Head Bolts (04+) |
ARP 134-3610 or AFR #6334
|
| Head Studs (04+) |
ARP 234-4317 or AFR #6335
|
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
Our 230cc LS1 MONGOOSE cylinder heads are recommended for aggressive street or street/strip builds with displacements up to 427 cubic inches operating at or below 7200 RPM. Capable of flowing 328 CFM at 0.650" lift with a 4.000" bore size.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 230cc Small Bore Competition Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 157 | 224 | 272 | 311 | 320 | 324 |
| Exh | 129 | 183 | 225 | 244 | 248 | 252 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 3.900", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| 230cc Large Bore Competition Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 158 | 230 | 282 | 320 | 325 | 328 |
| Exh | 129 | 183 | 225 | 244 | 248 | 252 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 3.900", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
230cc
|
| Intake Port Dimension |
3.250"H x 1.115"W x5/16 top 3/8 bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
86cc
|
| Exhaust Port Dimension |
1.385" H x 1.695" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
62cc, 65cc, or 72cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.510" O.D
|
| Max Valve Spring Pocket Machining |
1.525" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
3.900"
|
| Flat Mill - 62cc chamber |
.006" per cc 58cc Maximum
|
| Flat Mill - 72cc chamber |
.006" per cc 67cc Maximum
|
| Minimum Cross Sectional Area |
2.425 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Gasket for Small Bore |
Cometic 3.930 .040" or AFR #6846
|
| Head Gasket for Large Bore |
Cometic 4.160 .040" or AFR #6848
|
| Head Bolts (97-03) |
ARP 134-3609 or AFR #6330
|
| Head Studs (97-03) |
ARP 234-4110 or AFR #6331
|
| Head Bolts (04+) |
ARP 134-3610 or AFR #6334
|
| Head Studs (04+) |
ARP 234-4317 or AFR #6335
|
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
AFR's 205cc "Competition" cylinder heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for race applications and very agressive street/strip builds operating up to 7400 RPM. Maximum intake flow potential @0.750" lift is 331 CFM.
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 (upgrades available) | |
| 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Valve Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 205cc Street Head Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .700 | .750 | |
| Int | 139 | 199 | 251 | 285 | 297 | 308 | 317 | 320 |
| Exh | 121 | 170 | 206 | 219 | 227 | 230 | 232 | 234 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
205cc
|
| Intake Port Dimension |
2.115" H x 1.300" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.400" H x 1.400" W
|
| Exhaust Port Location |
Raised .125"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.625" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Angle Mill |
.009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.165 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262 | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708 | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
Super Vic or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3922 - Race Gas
|
| Spark Plug Starting Range |
Autolite 3924 - Pump Gas
|
AFR's 205cc "Competition" cylinder heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for race applications and very agressive street/strip builds operating up to 7400 RPM. Maximum intake flow potential @0.750" lift is 331 CFM.
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 (upgrades available) | |
| 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Valve Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 205cc Street Head Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .700 | .750 | |
| Int | 139 | 199 | 251 | 285 | 297 | 308 | 317 | 320 |
| Exh | 121 | 170 | 206 | 219 | 227 | 230 | 232 | 234 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
205cc
|
| Intake Port Dimension |
2.115" H x 1.300" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.400" H x 1.400" W
|
| Exhaust Port Location |
Raised .125"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.625" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Angle Mill |
.009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.165 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262 | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708 | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
Super Vic or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3922 - Race Gas
|
| Spark Plug Starting Range |
Autolite 3924 - Pump Gas
|
Our max effort cathedral port head for the LSX platform is recommended for race applications or radical "Pro Street" builds with displacements up to 454 cubic inches, operating at or below 6800 RPM. Requires a minimum bore size of 4.000" to clear the supplied 2.165" intake valve. CARB Legal for 2005 and older emissions controlled vehicles under CARB EO #D-250-4 with 65cc combustion chambers.
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.165" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 245cc Large Bore Competition Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 164 | 233 | 290 | 332 | 347 | 356 | 360 |
| Exh | 131 | 185 | 227 | 247 | 249 | 257 | 267 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.155", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
245cc
|
| Intake Port Dimension |
3.315"H x 1.145"W x 11/32 top 13/32 bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
88cc
|
| Exhaust Port Dimension |
1.495" H x 1.730" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
65cc or 73cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.510" O.D
|
| Max Valve Spring Pocket Machining |
1.525" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill - 65cc chamber |
.006" per cc 58cc Maximum
|
| Flat Mill - 73cc chamber |
.006" per cc 65cc Maximum
|
| Minimum Cross Sectional Area |
2.680 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM #12558573
|
| Head Gasket |
Cometic 4.200 .040" or AFR #6845
|
| Head Bolts (97-03) |
ARP 134-3609 or AFR #6330
|
| Head Studs (97-03) |
ARP 234-4110 or AFR #6331
|
| Head Bolts (04+) |
ARP 134-3610 or AFR #6334
|
| Head Studs (04+) |
ARP 234-4317 or AFR #6335
|
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
Our max effort cathedral port head for the LSX platform is recommended for race applications or radical "Pro Street" builds with displacements up to 454 cubic inches, operating at or below 6800 RPM. Requires a minimum bore size of 4.000" to clear the supplied 2.165" intake valve. CARB Legal for 2005 and older emissions controlled vehicles under CARB EO #D-250-4 with 65cc combustion chambers.
| Basic Package Components | |

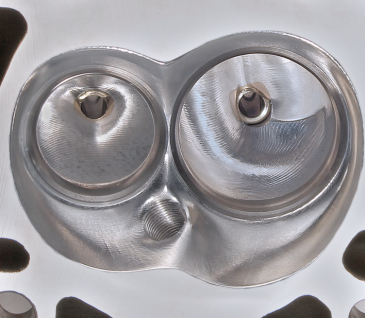

| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.165" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 245cc Large Bore Competition Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 164 | 233 | 290 | 332 | 347 | 356 | 360 |
| Exh | 131 | 185 | 227 | 247 | 249 | 257 | 267 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.155", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
245cc
|
| Intake Port Dimension |
3.315"H x 1.145"W x 11/32 top 13/32 bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
88cc
|
| Exhaust Port Dimension |
1.495" H x 1.730" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
65cc or 73cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.510" O.D
|
| Max Valve Spring Pocket Machining |
1.525" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill - 65cc chamber |
.006" per cc 58cc Maximum
|
| Flat Mill - 73cc chamber |
.006" per cc 65cc Maximum
|
| Minimum Cross Sectional Area |
2.680 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM #12558573
|
| Head Gasket |
Cometic 4.200 .040" or AFR #6845
|
| Head Bolts (97-03) |
ARP 134-3609 or AFR #6330
|
| Head Studs (97-03) |
ARP 234-4110 or AFR #6331
|
| Head Bolts (04+) |
ARP 134-3610 or AFR #6334
|
| Head Studs (04+) |
ARP 234-4317 or AFR #6335
|
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|

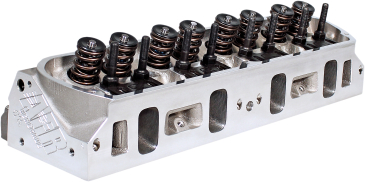

AFR's 185cc SB Ford Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 302 to 363 Cubic Inch operating below 6000 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and our one piece 8mm 21 4N Stainless Steel valves. They are available bare without any parts for the DIY. Sold as a single piece, 2 are required per engine.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 7° Steel Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .675" O.D x .513" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 185cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 119 | 177 | 225 | 255 | 257 | 260 |
| Exh | 105 | 143 | 163 | 166 | 168 | 170 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
2.010" H x 1.070" W x 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.370" H x 1.350" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.540" O.D
|
| Max Valve Spring Pocket Machining |
1.600" O.D
|
| Deck Thickness |
.325"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Max (from 64cc);
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket |
AFR #6915
|
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Studs, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 185cc SB Ford Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 302 to 363 Cubic Inch operating below 6000 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and our one piece 8mm 21 4N Stainless Steel valves. They are available bare without any parts for the DIY. Sold as a single piece, 2 are required per engine.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 7° Steel Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .675" O.D x .513" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 185cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 119 | 177 | 225 | 255 | 257 | 260 |
| Exh | 105 | 143 | 163 | 166 | 168 | 170 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
2.010" H x 1.070" W x 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.370" H x 1.350" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.540" O.D
|
| Max Valve Spring Pocket Machining |
1.600" O.D
|
| Deck Thickness |
.325"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Max (from 64cc);
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket |
AFR #6915
|
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Studs, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|

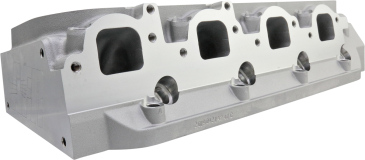

AFR's 335cc BBC Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 509 to 540 Cubic Inch operating below 6500 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as ARP rockers studs, PAC Racing springs, viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine.
| Included Components | |
| 3-angle Valve Job | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
|
As Cast Intake Ports |
|
| 11/32" Intake Valve, 2.250" x 5.500" O.A.L | |
| 11/32” Nail Head Exhaust Valve, 1.880” x 5.450” O.A.L. | |
| PAC Racing #1940 1.550” OD Hydraulic Roller Dual Valve Spring 175 lbs. on seat, .725” maximum lift, Max RPM 6500-6700 | |
| 10º Steel Retainers 1.500” O.D x 1.120” I.D x .705” I.D | |
| 10° 11/32" Valve Locks with lashcap recess | |
| ARP 7/16" Rocker Exhaust Studs | |
| ARP 7/16" Rocker Intake Studs | |
| 3/8” Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550” O.D x .705” I.D | |
| 335cc BBC Enforcer Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 140 | 207 | 265 | 296 | 336 | 355 |
| Exh | 119 | 172 | 211 | 239 | 249 | 255 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
335cc
|
| Intake Port Dimension |
2.510"H x 1.820"W x 3/8" Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
140cc
|
| Exhaust Port Dimension |
1.690"H x 1.900" W
|
| Exhaust Port Location |
.357" Raised
|
| Combustion Chamber Size(As Cast) |
122cc
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.750"
|
| Max Valve Spring Pocket Machining |
1.750"
|
| Warning::Do not machine spring pad any deeper. | |
| Deck Thickness |
0.45"
|
| Minimum Bore Diameter |
4.25"
|
| Flat Mill |
.006" per cc/ Maximum 114cc As Cast
|
| Angle Mill |
.009" per cc/Maximum 108cc As Cast
|
| Note:Angle mills might require a .120" Thick intake gasket. | |
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important:Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. . | |
| Exhaust Port Gasket | |
| Head Gasket, Fel-Pro #1047 (Gen V and VI) | |
| Head Gasket, Fel-Pro #1017-1 (Gen IV) | |
| Head Bolts, ARP 135-3703 (Gen IV) | |
| Head Bolts, ARP 135-3707 (Gen V) | |
| Head Studs, ARP 235-4713 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
Victor Jr or Super Victor
|
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 335cc BBC Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 509 to 540 Cubic Inch operating below 6500 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as ARP rockers studs, PAC Racing springs, viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine.
| Included Components | |
| 3-angle Valve Job | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
|
As Cast Intake Ports |
|
| 11/32" Intake Valve, 2.250" x 5.500" O.A.L | |
| 11/32” Nail Head Exhaust Valve, 1.880” x 5.450” O.A.L. | |
| PAC Racing #1940 1.550” OD Hydraulic Roller Dual Valve Spring 175 lbs. on seat, .725” maximum lift, Max RPM 6500-6700 | |
| 10º Steel Retainers 1.500” O.D x 1.120” I.D x .705” I.D | |
| 10° 11/32" Valve Locks with lashcap recess | |
| ARP 7/16" Rocker Exhaust Studs | |
| ARP 7/16" Rocker Intake Studs | |
| 3/8” Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550” O.D x .705” I.D | |
| 335cc BBC Enforcer Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 140 | 207 | 265 | 296 | 336 | 355 |
| Exh | 119 | 172 | 211 | 239 | 249 | 255 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
335cc
|
| Intake Port Dimension |
2.510"H x 1.820"W x 3/8" Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
140cc
|
| Exhaust Port Dimension |
1.690"H x 1.900" W
|
| Exhaust Port Location |
.357" Raised
|
| Combustion Chamber Size(As Cast) |
122cc
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.750"
|
| Max Valve Spring Pocket Machining |
1.750"
|
| Warning::Do not machine spring pad any deeper. | |
| Deck Thickness |
0.45"
|
| Minimum Bore Diameter |
4.25"
|
| Flat Mill |
.006" per cc/ Maximum 114cc As Cast
|
| Angle Mill |
.009" per cc/Maximum 108cc As Cast
|
| Note:Angle mills might require a .120" Thick intake gasket. | |
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important:Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. . | |
| Exhaust Port Gasket | |
| Head Gasket, Fel-Pro #1047 (Gen V and VI) | |
| Head Gasket, Fel-Pro #1017-1 (Gen IV) | |
| Head Bolts, ARP 135-3703 (Gen IV) | |
| Head Bolts, ARP 135-3707 (Gen V) | |
| Head Studs, ARP 235-4713 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
Victor Jr or Super Victor
|
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 210 LS1 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine. Please see footnotes for additional information.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .620" O.D x .490" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 210cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 148 | 209 | 253 | 265 | 268 | 268 |
| Exh | 105 | 150 | 180 | 199 | 204 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
3.190"H x 1.015"W x5/16 top 3/8" bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
82cc
|
| Exhaust Port Dimension |
1.400" H x 1.660" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.500" O.D
|
| Max Valve Spring Pocket Machining |
1.500" O.D
|
| Warning:Do not machine spring pad any deeper. | |
| Deck Thickness |
0.425"
|
| Minimum Bore Diameter |
3.900"
|
| Flat Mill |
.006" per cc 58cc Maximum
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Head Gasket |
Factory GM LS2
|
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Bolts (97-03) | |
| Head Studs (97-03) | |
| Head Bolts (04+) | |
| Head Studs (04+) | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
AFR's 210 LS1 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine. Please see footnotes for additional information.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .620" O.D x .490" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 210cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 148 | 209 | 253 | 265 | 268 | 268 |
| Exh | 105 | 150 | 180 | 199 | 204 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
3.190"H x 1.015"W x5/16 top 3/8" bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
82cc
|
| Exhaust Port Dimension |
1.400" H x 1.660" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.500" O.D
|
| Max Valve Spring Pocket Machining |
1.500" O.D
|
| Warning:Do not machine spring pad any deeper. | |
| Deck Thickness |
0.425"
|
| Minimum Bore Diameter |
3.900"
|
| Flat Mill |
.006" per cc 58cc Maximum
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Head Gasket |
Factory GM LS2
|
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Bolts (97-03) | |
| Head Studs (97-03) | |
| Head Bolts (04+) | |
| Head Studs (04+) | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
AFR's 210 LS1 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine. Please see footnotes for additional information.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve 2.000” x 4.900” O.A.L. | |
| 8mm Bead Lock Exhaust Valve, 1.570” x 4.915" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .620" O.D x .490" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 210cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 136 | 199 | 246 | 272 | 276 | 265 |
| Exh | 93 | 140 | 180 | 204 | 211 | 215 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
3.190"H x 1.015"W x5/16 top 3/8" bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
82cc
|
| Exhaust Port Dimension |
1.400" H x 1.660" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.500" O.D
|
| Max Valve Spring Pocket Machining |
1.500" O.D
|
| Warning:Do not machine spring pad any deeper. | |
| Deck Thickness |
0.425"
|
| Minimum Bore Diameter |
3.780""
|
| Flat Mill |
.006" per cc 58cc Maximum
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Head Gasket |
Factory GM LS2
|
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Bolts (97-03) | |
| Head Studs (97-03) | |
| Head Bolts (04+) | |
| Head Studs (04+) | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
AFR's 210 LS1 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine. Please see footnotes for additional information.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve 2.000” x 4.900” O.A.L. | |
| 8mm Bead Lock Exhaust Valve, 1.570” x 4.915" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .620" O.D x .490" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 210cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 136 | 199 | 246 | 272 | 276 | 265 |
| Exh | 93 | 140 | 180 | 204 | 211 | 215 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
3.190"H x 1.015"W x5/16 top 3/8" bottom
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
82cc
|
| Exhaust Port Dimension |
1.400" H x 1.660" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
15°
|
| Valve Spring Pocket Diameter |
1.500" O.D
|
| Max Valve Spring Pocket Machining |
1.500" O.D
|
| Warning:Do not machine spring pad any deeper. | |
| Deck Thickness |
0.425"
|
| Minimum Bore Diameter |
3.780""
|
| Flat Mill |
.006" per cc 58cc Maximum
|
| Spark Plug Dimensions |
14mm x .750" w/Tapered seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Head Gasket |
Factory GM LS2
|
| Intake Port Gasket |
GM or FAST
|
| Exhaust Port Gasket |
GM#12558573
|
| Head Bolts (97-03) | |
| Head Studs (97-03) | |
| Head Bolts (04+) | |
| Head Studs (04+) | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 90mm, 92mm, or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
AFR's 185cc SB Ford Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. In addition, these heads utilize a 1.900” Intake valve and are compatible with OEM piston valve relief. This budget friendly head is perfect for your 302 to 363 Cubic Inch engine operating below 6000 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads, such as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and our one-piece 8mm 21 4N Stainless Steel valves. They are available bare and without any parts for the DIY.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 1.900" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 7° Steel Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .675" O.D x .513" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 185cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 123 | 175 | 208 | 232 | 242 | 251 |
| Exh | 105 | 143 | 163 | 166 | 168 | 170 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
2.010" H x 1.070" W x 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.370" H x 1.350" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.540" O.D
|
| Max Valve Spring Pocket Machining |
1.600" O.D
|
| Deck Thickness |
.325"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 53cc Max (from 63cc);
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket |
AFR #6915
|
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Studs, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|
AFR's 185cc SB Ford Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. In addition, these heads utilize a 1.900” Intake valve and are compatible with OEM piston valve relief. This budget friendly head is perfect for your 302 to 363 Cubic Inch engine operating below 6000 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads, such as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and our one-piece 8mm 21 4N Stainless Steel valves. They are available bare and without any parts for the DIY.
| Included Components | |
| As Cast Combustion Chambers | |
| As Cast Exhaust Ports | |
| As Cast Intake Ports | |
|
3-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 1.900" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 7° Steel Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .675" O.D x .513" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| 185cc Street Head Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 123 | 175 | 208 | 232 | 242 | 251 |
| Exh | 105 | 143 | 163 | 166 | 168 | 170 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
2.010" H x 1.070" W x 5/16 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.370" H x 1.350" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
64cc
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.540" O.D
|
| Max Valve Spring Pocket Machining |
1.600" O.D
|
| Deck Thickness |
.325"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 53cc Max (from 63cc);
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket |
AFR #6915
|
| Head Gasket, 302/351W, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Studs, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold | |
| Spark Plug Starting Range |
Autolite 3924
|

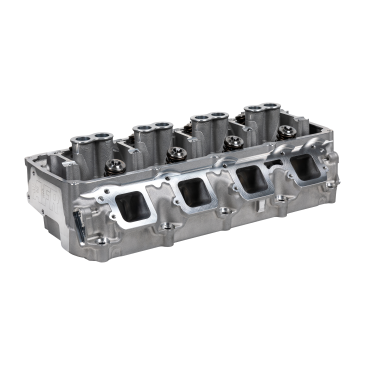

The utlimate OE replacement or stock rebuild cylinder head for you 5.7/6.1L Gen III Hemi. Manufactured from A356 aluminum using permanent-mold technology, AFR's 185cc As-Cast Black Hawk Gen III Hemi Aluminum Cylinder Heads are outfitted with our trademarked .750” thick head deck to meet the boost and power demands of today’s OEM and aftermarket engines. We have improved the water jacketing for enhanced cooling while retaining a minimum of .200” port to water jacket thickness. Machine option available to add bolt hole and dowel provisioning for Hellcat superchargers. Designed for use with hydraulic roller camshafts up to .600” of lift. Please see footnotes for additional information.
| Included Components | |
| As-Cast Intake Ports | |
| As-Cast Exhaust Ports | |
| CNC Combustion Chambers | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve 2.050” x 5.108” O.A.L. | |
| 8mm Bead Lock Exhaust Valve 1.590” x 5.135” O.A.L. | |
| PAC Racing Springs 1.290” OD Hydraulic Roller Dual Valve Drag Race Spring, 140 lbs. on seat, .600” maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 10° Chrome Moly Retainers 1.245” O.D x .880” I.D x .655” I.D | |
| 10° 8mm Valve Keepers with lashcap recess | |
| Hardened Valve Spring Cup 1.380" O.D x 1.300" I.D x .570" I.D | |
| Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Exhaust Valve Seats 1.696" O.D x 1.35" I.D x .375" Deep | |
| Intake Bronze Valve Guides 8mm x 2.100" O.A.L | |
| Exhaust Bronze Valve Guides 8mm x 2.100" O.A.L | |
| Viton Valve Seals .600" O.D x .495" I.D | AFR #6615 |
| 185cc Gen III Hemi As Cast Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 160 | 234 | 293 | 324 | 330 | 332 | 334 |
| Exh | 123 | 167 | 207 | 218 | 220 | 221 | 222 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| MSCA Minimum Cross Section Area |
2.422 in2
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
1.750"H x 1.850"
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.550"H x 1.760" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size (As-Cast) |
69cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
Stock
|
| Valve Spring Pocket Diameter |
1.625"
|
| Max Valve Spring Pocket Machining |
Do Not Machine
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
3.197"
|
| Flat Mill |
.006" per cc/ Maximum 62cc as cast chamber
|
| Angle Mill |
.009" per cc/ Maximum 60cc as cast chamber
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Spark Plug Dimensions |
14mm x 1"
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
The utlimate OE replacement or stock rebuild cylinder head for you 5.7/6.1L Gen III Hemi. Manufactured from A356 aluminum using permanent-mold technology, AFR's 185cc As-Cast Black Hawk Gen III Hemi Aluminum Cylinder Heads are outfitted with our trademarked .750” thick head deck to meet the boost and power demands of today’s OEM and aftermarket engines. We have improved the water jacketing for enhanced cooling while retaining a minimum of .200” port to water jacket thickness. Machine option available to add bolt hole and dowel provisioning for Hellcat superchargers. Designed for use with hydraulic roller camshafts up to .600” of lift. Please see footnotes for additional information.
| Included Components | |
| As-Cast Intake Ports | |
| As-Cast Exhaust Ports | |
| CNC Combustion Chambers | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve 2.050” x 5.108” O.A.L. | |
| 8mm Bead Lock Exhaust Valve 1.590” x 5.135” O.A.L. | |
| PAC Racing Springs 1.290” OD Hydraulic Roller Dual Valve Drag Race Spring, 140 lbs. on seat, .600” maximum lift, Max RPM 6300-6500 (upgrades available) | |
| 10° Chrome Moly Retainers 1.245” O.D x .880” I.D x .655” I.D | |
| 10° 8mm Valve Keepers with lashcap recess | |
| Hardened Valve Spring Cup 1.380" O.D x 1.300" I.D x .570" I.D | |
| Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Exhaust Valve Seats 1.696" O.D x 1.35" I.D x .375" Deep | |
| Intake Bronze Valve Guides 8mm x 2.100" O.A.L | |
| Exhaust Bronze Valve Guides 8mm x 2.100" O.A.L | |
| Viton Valve Seals .600" O.D x .495" I.D | AFR #6615 |
| 185cc Gen III Hemi As Cast Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 160 | 234 | 293 | 324 | 330 | 332 | 334 |
| Exh | 123 | 167 | 207 | 218 | 220 | 221 | 222 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| MSCA Minimum Cross Section Area |
2.422 in2
|
| Intake Port Volume |
185cc
|
| Intake Port Dimension |
1.750"H x 1.850"
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.550"H x 1.760" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size (As-Cast) |
69cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
Stock
|
| Valve Spring Pocket Diameter |
1.625"
|
| Max Valve Spring Pocket Machining |
Do Not Machine
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
3.197"
|
| Flat Mill |
.006" per cc/ Maximum 62cc as cast chamber
|
| Angle Mill |
.009" per cc/ Maximum 60cc as cast chamber
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Spark Plug Dimensions |
14mm x 1"
|
| CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. | |
AFR's 345cc BBC cylinder head is recommended for radical street/strip, "Pro Street," or racing applications with displacements up to 572 cubic inches, operating at or below 7000 RPM. The intake runners and exhaust ports are partially CNC machined, while the combustion chambers are offered with partial or full CNC machining with a bowl blend. These heads are capable of flowing 401 CFM at 0.700" of lift.
| Included Components | |
| 50% CNC Ported Combustion Chambers | |
| 20% CNC Ported Exhaust Ports | |
| 30% CNC Ported Intake Ports | |
|
Competition 5 Angle Valve Job |
|
| 11/32" Intake Valve, 2.300" x5.500" O.A.L | |
| 11/32" Tulip Exhaust Valve, 1.880" x 5.450" O.A.L | |
| PAC Racing #1224 1.625” OD Solid Roller Dual Valve Spring 275 lbs. on seat, .850” maximum lift, Max RPM 7400-7600 (upgrades available) | |
| 10° Steel Retainers 1.500" O.D x 1.168" I.D x .844" I.D | |
| 10° 11/32" Valve Locks with lashcap recess | |
| ARP 7/16” Rocker Studs Intake | |
| ARP 7/16” Rocker Studs Exhaust | |
| Adjustable 3/8" Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Spring Cup 1.740" O.D / 1.650" I.D | |
| Intake Valve Seats 2.450" O.D x 2.000" I.D x .375" Deep | |
| Exhaust Valve Seats 2.000" O.D x 1.580" I.D x .375" Deep | |
| 11/32" Intake Bronze Valve Guides .502" O.D x 2.10" O.A.L | |
| 11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L | |
| 345cc BBC Partial CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 149 | 221 | 280 | 322 | 360 | 382 |
| Exh | 129 | 184 | 222 | 251 | 259 | 264 |
| 345cc BBC Full CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 157 | 231 | 289 | 336 | 365 | 375 |
| Exh | 138 | 193 | 236 | 253 | 262 | 266 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.500", intake 3/4" radius plate exhaust, 2 1/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
345cc
|
| Intake Port Dimension |
2.435"H x 1.765"W x 13/32° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
132cc
|
| Exhaust Port Dimension |
1.720"H x 1.920" W
|
| Exhaust Port Location |
.375" Raised
|
| Combustion Chamber Size (As Cast) |
117cc
|
| Combustion Chamber Size (Full CNC) |
121cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.725" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.250"
|
| Flat Mill |
.006" per cc/ Maximum 108cc As Cast or 114cc CNC Chamber
|
| Angle Mill |
.009" per cc/Maximum 104cc As Cast or CNC Chamber
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
3.263 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket |
AFR #6854 (.120" Thick)
|
| Intake Port Gasket |
AFR #6856 (.060" Thick)
|
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Head Gasket |
Fel-Pro #1017-1 (Mark IV) or AFR #6850
|
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Bolts |
ARP 135-3703 (Mark IV) or AFR #6306
|
| Head Bolts |
ARP 135-3707 (Mark V) or AFR #6308
|
| Head Studs |
ARP 235-4713 or AFR #6307
|
| Head Bolt Washers |
Manley, AFR #6320
|
| Stud Girdle, (AFR Specific) | |
| 7/16 Stud Mount Rocker Arms - 1.7 Ratio (For Optimized Geometry) | |
| 1.7 Shaft Mount Rocker Arms T&D | |
| Shaft Mount Rocker Arms |
Crower or Jesel Pro Series
|
| Suggested Manifold |
Victor Jr
|
| Suggested Manifold |
Super Victor
|
| Spark Plug Starting Range |
Autolite 3924
|
| Note: 1” longer head bolt needed on four bottom exhaust bolt holes. | |
AFR's 345cc BBC cylinder head is recommended for radical street/strip, "Pro Street," or racing applications with displacements up to 572 cubic inches, operating at or below 7000 RPM. The intake runners and exhaust ports are partially CNC machined, while the combustion chambers are offered with partial or full CNC machining with a bowl blend. These heads are capable of flowing 401 CFM at 0.700" of lift.
| Included Components | |
| 50% CNC Ported Combustion Chambers | |
| 20% CNC Ported Exhaust Ports | |
| 30% CNC Ported Intake Ports | |
|
Competition 5 Angle Valve Job |
|
| 11/32" Intake Valve, 2.300" x5.500" O.A.L | |
| 11/32" Tulip Exhaust Valve, 1.880" x 5.450" O.A.L | |
| PAC Racing #1224 1.625” OD Solid Roller Dual Valve Spring 275 lbs. on seat, .850” maximum lift, Max RPM 7400-7600 (upgrades available) | |
| 10° Steel Retainers 1.500" O.D x 1.168" I.D x .844" I.D | |
| 10° 11/32" Valve Locks with lashcap recess | |
| ARP 7/16” Rocker Studs Intake | |
| ARP 7/16” Rocker Studs Exhaust | |
| Adjustable 3/8" Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Spring Cup 1.740" O.D / 1.650" I.D | |
| Intake Valve Seats 2.450" O.D x 2.000" I.D x .375" Deep | |
| Exhaust Valve Seats 2.000" O.D x 1.580" I.D x .375" Deep | |
| 11/32" Intake Bronze Valve Guides .502" O.D x 2.10" O.A.L | |
| 11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L | |
| 345cc BBC Partial CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 149 | 221 | 280 | 322 | 360 | 382 |
| Exh | 129 | 184 | 222 | 251 | 259 | 264 |
| 345cc BBC Full CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 157 | 231 | 289 | 336 | 365 | 375 |
| Exh | 138 | 193 | 236 | 253 | 262 | 266 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.500", intake 3/4" radius plate exhaust, 2 1/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
345cc
|
| Intake Port Dimension |
2.435"H x 1.765"W x 13/32° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
132cc
|
| Exhaust Port Dimension |
1.720"H x 1.920" W
|
| Exhaust Port Location |
.375" Raised
|
| Combustion Chamber Size (As Cast) |
117cc
|
| Combustion Chamber Size (Full CNC) |
121cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.725" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.250"
|
| Flat Mill |
.006" per cc/ Maximum 108cc As Cast or 114cc CNC Chamber
|
| Angle Mill |
.009" per cc/Maximum 104cc As Cast or CNC Chamber
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
3.263 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: THESE PRODUCTS ARE ILLEGAL TO OPERATE ON ANY PUBLIC HIGHWAY. THIS MEANS ANY PUBLIC PAVED OR UNPAVED ROADWAY OR IN A PUBLIC PARK. THESE PRODUCTS ARE ONLY LEGAL IF USED ON A DEDICATED RACING VEHICLE. VIOLATION ARE SUBJECT TO A MAXIMUM PENALTY OF $37,500 PER VIOLATION PER VEHICLE, REVOCATION OF REGISTRATION BY DMV, LOSS OF USE ON PUBLIC RIGHT OF WAYS AND PROOF OF CORRECTION OF THE TAMPERING. |
|
| Recommended Components: | |
| Intake Port Gasket |
AFR #6854 (.120" Thick)
|
| Intake Port Gasket |
AFR #6856 (.060" Thick)
|
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Head Gasket |
Fel-Pro #1017-1 (Mark IV) or AFR #6850
|
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Bolts |
ARP 135-3703 (Mark IV) or AFR #6306
|
| Head Bolts |
ARP 135-3707 (Mark V) or AFR #6308
|
| Head Studs |
ARP 235-4713 or AFR #6307
|
| Head Bolt Washers |
Manley, AFR #6320
|
| Stud Girdle, (AFR Specific) | |
| 7/16 Stud Mount Rocker Arms - 1.7 Ratio (For Optimized Geometry) | |
| 1.7 Shaft Mount Rocker Arms T&D | |
| Shaft Mount Rocker Arms |
Crower or Jesel Pro Series
|
| Suggested Manifold |
Victor Jr
|
| Suggested Manifold |
Super Victor
|
| Spark Plug Starting Range |
Autolite 3924
|
| Note: 1” longer head bolt needed on four bottom exhaust bolt holes. | |
AFR’s 180cc “Street” heads are a cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6000 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. Component upgrade and machining options are available to customize AFR Heads to your specific build (see pg. 45). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes on pg. 50 for additional information.
| Included Components | |
| 90% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-Angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Manley Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 180cc Street Head Flow Chart | ||||
| .200 | .300 | .400 | .500 | |
| Int | 138 | 198 | 240 | 260 |
| Exh | 110 | 158 | 190 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
180cc
|
| Intake Port Dimension |
2.050" H x 1.250" W x 5/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120 thick intake gasket. | |
| Minimum Cross Sectional Area |
1.810 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Recommended Components: | |
| Intake Gasket |
GM #12524653 LT1 or Fel-Pro #1284
|
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1404 | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold |
GM LT1 or LT4
|
| Spark Plug Starting Range |
Autolite 3924
|
AFR’s 180cc “Street” heads are a cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6000 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250-2. Component upgrade and machining options are available to customize AFR Heads to your specific build (see pg. 45). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes on pg. 50 for additional information.
| Included Components | |
| 90% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-Angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.020" x 4.900" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
|
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 |
|
| 7° Manley Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| ARP 3/8" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 180cc Street Head Flow Chart | ||||
| .200 | .300 | .400 | .500 | |
| Int | 138 | 198 | 240 | 260 |
| Exh | 110 | 158 | 190 | 207 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
180cc
|
| Intake Port Dimension |
2.050" H x 1.250" W x 5/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
64cc
|
| Exhaust Port Dimension |
1.450" H x 1.550" W
|
| Exhaust Port Location |
.100" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120 thick intake gasket. | |
| Minimum Cross Sectional Area |
1.810 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Recommended Components: | |
| Intake Gasket |
GM #12524653 LT1 or Fel-Pro #1284
|
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1404 | |
| Head Gasket, 350cid Fel-Pro #1003 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold |
GM LT1 or LT4
|
| Spark Plug Starting Range |
Autolite 3924
|
AFR’s 210cc “Competition” LT4 heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for race applications and aggressive street/strip builds up to 400 cubic inches, operating up to 6500-6800 RPM. Component upgrade and machining options are available to customize AFR Heads to your specific build (please call for all available options). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes for additional information. AFR heads are available bare (without parts), call our tech line for details.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 | |
| Manley 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 210cc Race Ready Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 145 | 199 | 248 | 285 | 301 | 309 | 311 |
| Exh | 110 | 158 | 192 | 210 | 214 | 220 | 222 |
| 210cc Competition Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 147 | 201 | 257 | 296 | 310 | 318 | 322 |
| Exh | 120 | 160 | 214 | 225 | 229 | 235 | 237 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
2.200" H x 1.310" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
80cc
|
| Exhaust Port Dimension |
1.420" H x 1.545" W
|
| Exhaust Port Location |
.250" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
Race Ready: 2.100 sp in, Comp 2.115 sq. in
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
Not Emissions Complient
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1405 | |
| Head Gasket, LT1 Fel-Pro #1074 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold |
GM LT4 or Edelbrock LT4
|
| Spark Plug Starting Range |
Autolite 3922
|
AFR’s 210cc “Competition” LT4 heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for race applications and aggressive street/strip builds up to 400 cubic inches, operating up to 6500-6800 RPM. Component upgrade and machining options are available to customize AFR Heads to your specific build (please call for all available options). To ensure trouble free operation of AFR cylinder heads & parts please view the footnotes for additional information. AFR heads are available bare (without parts), call our tech line for details.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length | |
| PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 | |
| Manley 10° Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D | |
| 10° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.696" O.D x 1.325" I.D x .305" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L | |
| 210cc Race Ready Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 145 | 199 | 248 | 285 | 301 | 309 | 311 |
| Exh | 110 | 158 | 192 | 210 | 214 | 220 | 222 |
| 210cc Competition Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 147 | 201 | 257 | 296 | 310 | 318 | 322 |
| Exh | 120 | 160 | 214 | 225 | 229 | 235 | 237 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
210cc
|
| Intake Port Dimension |
2.200" H x 1.310" W x 3/8 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
80cc
|
| Exhaust Port Dimension |
1.420" H x 1.545" W
|
| Exhaust Port Location |
.250" Raised
|
| Combustion Chamber Size |
65cc or 75cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
23°
|
| Valve Spring Pocket Diameter |
1.580" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 60cc Maximum
|
| Angle Mill |
.009" per cc 55cc Maximum
|
| Note: Angle mills might require .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
Race Ready: 2.100 sp in, Comp 2.115 sq. in
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| Carb EO# |
Not Emissions Complient
|
| Recommended Components: | |
| Intake Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1405 | |
| Head Gasket, LT1 Fel-Pro #1074 | |
| SB Chevy Head Bolt Kit, ARP #134-3701 | |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 | |
| Head Bolt Washers, Manley | |
| AFR Stud Girdle | |
| Suggested Manifold |
GM LT4 or Edelbrock LT4
|
| Spark Plug Starting Range |
Autolite 3922
|
AFR’s 260cc LS3 "Mongoose" heads feature 100% CNC ported intake, exhaust and chambers using our advanced engineering and flow techniques to produce the ultimate Rectangle Port head available today. Featuring A356 aluminum castings, titanium retainers and the highest quality components, throughout. They’re designed for 4.000 or larger bore applications up to 454 CI, operating up to 7000 RPM. This product is street legal in 50 states from 2007 to 2016 emission controlled vehicles with a General Motors 6.2L LS engine. AFR heads are available bare (without parts), call our tech line for details.
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.165" x 5.200" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.205" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650 maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.550" O.A.L | |
| Rocker Rail Stand |
AFR #6040
|
| 260cc Large Bore Competition Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .600 | .650 | .700 | |
| Int | 159 | 234 | 293 | 336 | 366 | 377 | 384 |
| Exh | 112 | 158 | 207 | 235 | 248 | 251 | 255 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.155", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
|
Specifications & Features: |
|
| Material |
A356 Aluminum
|
| Intake Port Volume |
260cc
|
| Intake Port Dimension |
2.610"H x 1.300"W x 7/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
95cc
|
| Exhaust Port Dimension |
1.540" H x 1.760" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
69cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
12°
|
| Valve Spring Pocket Diameter |
1.490" O.D
|
| Max Valve Spring Pocket Machining |
1.510" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 62cc Maximum
|
| Minimum Cross Sectional Area |
2.875 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/ Tapered or Gasket Seat
|
|
Carb EO# |
|
| Recommended Components: | |
| Intake Port Gasket |
Factory GM or Aftermarket
|
| Recommend Rockers - OEM w/ trunion upgrade Yella Terra 6733 w/ 5132 Valve Cover gasket. |
Scorpion 1162
|
| Exhaust Port Gasket |
GM #12558573
|
| Head Gasket |
Cometic 4.160 Bore Size
|
| Head Bolts (04+), ARP 134-3610 | |
| Head Studs (04+), 2004 & Later Blocks ARP #234-4317, Pre 2004 Blocks ARP #234-4316 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 92mm or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
| Pushrods: Longer than Stock (see instructions for details) | |
AFR’s 260cc LS3 "Mongoose" heads feature 100% CNC ported intake, exhaust and chambers using our advanced engineering and flow techniques to produce the ultimate Rectangle Port head available today. Featuring A356 aluminum castings, titanium retainers and the highest quality components, throughout. They’re designed for 4.000 or larger bore applications up to 454 CI, operating up to 7000 RPM. This product is street legal in 50 states from 2007 to 2016 emission controlled vehicles with a General Motors 6.2L LS engine. AFR heads are available bare (without parts), call our tech line for details.
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve, 2.165" x 5.200" Overall Valve Length | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 5.205" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650 maximum lift, Max RPM 7000-7200 | |
| 7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D | |
| 7° Bead Lock Valve Keepers | |
| Viton Valve Seals .600" O.D x .495" I.D | |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | |
| Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| 8 mm Bronze Valve Guides .502" O.D x 2.550" O.A.L | |
| Rocker Rail Stand |
AFR #6040
|
| 260cc Large Bore Competition Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .600 | .650 | .700 | |
| Int | 159 | 234 | 293 | 336 | 366 | 377 | 384 |
| Exh | 112 | 158 | 207 | 235 | 248 | 251 | 255 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.155", intake 3/4" radius plate exhaust, 1 3/4" curved pipe
|
Specifications & Features: |
|
| Material |
A356 Aluminum
|
| Intake Port Volume |
260cc
|
| Intake Port Dimension |
2.610"H x 1.300"W x 7/16° Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
95cc
|
| Exhaust Port Dimension |
1.540" H x 1.760" W
|
| Exhaust Port Location |
Stock
|
| Combustion Chamber Size |
69cc
|
| Valve Cover Bolt Pattern |
Center Bolt
|
| Valve Angle |
12°
|
| Valve Spring Pocket Diameter |
1.490" O.D
|
| Max Valve Spring Pocket Machining |
1.510" O.D
|
| Warning: Do not machine spring pad any deeper. | |
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 62cc Maximum
|
| Minimum Cross Sectional Area |
2.875 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/ Tapered or Gasket Seat
|
|
Carb EO# |
|
| Recommended Components: | |
| Intake Port Gasket |
Factory GM or Aftermarket
|
| Recommend Rockers - OEM w/ trunion upgrade Yella Terra 6733 w/ 5132 Valve Cover gasket. |
Scorpion 1162
|
| Exhaust Port Gasket |
GM #12558573
|
| Head Gasket |
Cometic 4.160 Bore Size
|
| Head Bolts (04+), ARP 134-3610 | |
| Head Studs (04+), 2004 & Later Blocks ARP #234-4317, Pre 2004 Blocks ARP #234-4316 | |
| Head Bolt Washers, Manley | |
| Suggested Manifold |
FAST 92mm or 102mm
|
| Spark Plug Starting Range |
NGK TR55
|
| Pushrods: Longer than Stock (see instructions for details) | |
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.050" x 4.903" Overall Valve Length, Stud mount | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650" maximum lift, Max RPM 7000-7200 | |
| 7° Chrome Moly Retainers | |
| 7° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .780" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| Bronze Valve Guides | |
| Thermactor Air Injector Reducer Bushing (5/8"-11 x 7/16"-14) | |
| 195cc Competition Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 148 | 201 | 255 | 283 | 292 | 294 | 298 |
| Exh | 126 | 171 | 207 | 222 | 227 | 231 | 235 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.060" H x 1.220" W 11/32 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.405" H x 1.400" W
|
| Exhaust Port Location |
Raised .125"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.625" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Angle Mill |
.009" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.075 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status:This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262 | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
RPM Performer or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3924
|
| Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.050" x 4.903" Overall Valve Length, Stud mount | |
| 8mm Bead Lock Exhaust Valve, 1.600" x 4.950" Overall Valve Length | |
| PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650" maximum lift, Max RPM 7000-7200 | |
| 7° Chrome Moly Retainers | |
| 7° Bead Lock Valve Keepers | |
| ARP 7/16" Rocker Studs | |
| Adjustable 5/16" Guide Plates | |
| Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .780" I.D | |
| Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep | |
| Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep | |
| Bronze Valve Guides | |
| Thermactor Air Injector Reducer Bushing (5/8"-11 x 7/16"-14) | |
| 195cc Competition Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 148 | 201 | 255 | 283 | 292 | 294 | 298 |
| Exh | 126 | 171 | 207 | 222 | 227 | 231 | 235 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
195cc
|
| Intake Port Dimension |
2.060" H x 1.220" W 11/32 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
70cc
|
| Exhaust Port Dimension |
1.405" H x 1.400" W
|
| Exhaust Port Location |
Raised .125"
|
| Combustion Chamber Size |
58cc or 72cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
20°
|
| Valve Spring Pocket Diameter |
1.460" O.D
|
| Max Valve Spring Pocket Machining |
1.625" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.000"
|
| Flat Mill |
.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Angle Mill |
.009" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
|
| Minimum Cross Sectional Area |
2.075 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
| CARB Status:This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. | |
| Head Bolt Diameter |
1/2"
|
| Recommended Components: | |
| Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262 | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket, Fel-Pro #1487 | |
| Head Gasket, Fel-Pro #1011-1 | |
| SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603 | |
| SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503 | |
| 1/2" Bolt - 7/16" Thread Head Bolts | |
| Head Bolt Washer Kit, Manley | |
| Stud Girdle | |
| Suggested Manifold |
RPM Performer or Vic Jr.
|
| Spark Plug Starting Range |
Autolite 3924
|
Our medium sized 290cc oval port cylinder head is recommended for moderate street or street/strip big block chevys with displacements up to 509 cubic inches, operating at or below 6500 RPM. Features 100% CNC machined intake runners , exhaust ports and combustion chambers; capable of flowing 375 CFM at 0.700" of lift.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 11/32" Intake Valve, 2.250" x 5.500" O.A.L | |
| 11/32" Nail Head Exhaust Valve, 1.880" x 5.450" Overall Valve Length | |
| PAC Racing Springs 1.550” OD Solid Roller Dual Valve Drag Race Spring, 220 lbs. on seat, .710” maximum lift, - 260* max recommended duration, Max RPM 7200-7400 (upgrades available) | |
| PAC Racing #1940 1.550” OD Hydraulic Roller Dual Valve Spring, 175 lbs. on seat, .725” maximum lift, Max RPM 6500-6700 | |
| 10° Steel Retainers 1.500" O.D x 1.120"I.D x .705" I.D | |
| 10° 11/32" Valve Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs Intake | |
| ARP 7/16" Rocker Studs Exhaust | |
| Adjustable 3/8" Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D - For 8000 Spring | |
| Hardened Valve Spring I.D Locator 1.655" O.D x 1.565" I.D – For 8002 Spring | |
| Intake Valve Seats 2.450" O.D x 1.950" I.D x .375" Deep | |
| Exhaust Valve Seats 2.000" O.D x 1.580" I.D x .375" Deep | |
| 11/32" Intake Bronze Valve Guides .502" O.D x 2.10" O.A.L | |
| 11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L | |
| 290cc Competition Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | .700 | |
| Int | 159 | 233 | 289 | 327 | 339 | 354 | 362 | 369 |
| Exh | 135 | 180 | 230 | 262 | 271 | 278 | 286 | 292 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.310", intake 3/4" radius plate exhaust, 1 7/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
290cc
|
| Intake Port Dimension |
2.030"H x 1.830"W x1/2 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
135cc
|
| Exhaust Port Dimension |
1.770"H x 2.010" W
|
| Exhaust Port Location |
.375" Raised
|
| Combustion Chamber Size(Full CNC) |
112cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.725" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.250"
|
| Flat Mill |
.006" per cc/ Maximum 102cc
|
| Angle Mill |
.009" per cc/ Maximum 97cc
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
2.895 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Gasket |
Fel-Pro #1017-1 (Mark IV) or AFR #6850
|
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Bolts |
ARP 135-3703 (Mark IV) or AFR #6306
|
| Head Bolts |
ARP 135-3707 (Mark V) or AFR #6308
|
| Head Studs |
ARP 235-4713 or AFR #6307
|
| Head Bolt Washers |
Manley, AFR #6320
|
| Stud Girdle, (AFR Specific) | |
| 7/16 Stud Mount Rocker Arms - 1.7 Ratio (For Optimized Geometry) | |
| 1.7 Shaft Mount Rocker Arms T&D | |
| Shaft Mount Rocker Arms |
Crower or Jesel Pro Series
|
| Suggested Manifold |
Victor Jr
|
| Suggested Manifold | |
| Suggested Manifold |
Air Gap #7561
|
| Spark Plug Starting Range |
Autolite 3924
|
| Note: 1” longer head bolt needed on four bottom exhaust bolt holes. | |
Our medium sized 290cc oval port cylinder head is recommended for moderate street or street/strip big block chevys with displacements up to 509 cubic inches, operating at or below 6500 RPM. Features 100% CNC machined intake runners , exhaust ports and combustion chambers; capable of flowing 375 CFM at 0.700" of lift.
| Included Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
|
Competition 5-angle Valve Job |
|
| 11/32" Intake Valve, 2.250" x 5.500" O.A.L | |
| 11/32" Nail Head Exhaust Valve, 1.880" x 5.450" Overall Valve Length | |
| PAC Racing Springs 1.550” OD Solid Roller Dual Valve Drag Race Spring, 220 lbs. on seat, .710” maximum lift, - 260* max recommended duration, Max RPM 7200-7400 (upgrades available) | |
| PAC Racing #1940 1.550” OD Hydraulic Roller Dual Valve Spring, 175 lbs. on seat, .725” maximum lift, Max RPM 6500-6700 | |
| 10° Steel Retainers 1.500" O.D x 1.120"I.D x .705" I.D | |
| 10° 11/32" Valve Keepers with lashcap recess | |
| ARP 7/16" Rocker Studs Intake | |
| ARP 7/16" Rocker Studs Exhaust | |
| Adjustable 3/8" Guide Plates | |
| 11/32" Viton Valve Seals | |
| Hardened Valve Spring I.D Locator 1.550" O.D x .705" I.D - For 8000 Spring | |
| Hardened Valve Spring I.D Locator 1.655" O.D x 1.565" I.D – For 8002 Spring | |
| Intake Valve Seats 2.450" O.D x 1.950" I.D x .375" Deep | |
| Exhaust Valve Seats 2.000" O.D x 1.580" I.D x .375" Deep | |
| 11/32" Intake Bronze Valve Guides .502" O.D x 2.10" O.A.L | |
| 11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L | |
| 290cc Competition Flow Chart | ||||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | .700 | |
| Int | 159 | 233 | 289 | 327 | 339 | 354 | 362 | 369 |
| Exh | 135 | 180 | 230 | 262 | 271 | 278 | 286 | 292 |
Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.310", intake 3/4" radius plate exhaust, 1 7/8" curved pipe
| Specifications & Features: | |
| Material |
A356 Aluminum
|
| Intake Port Volume |
290cc
|
| Intake Port Dimension |
2.030"H x 1.830"W x1/2 Radius
|
| Intake Port Location |
Stock
|
| Exhaust Port Volume |
135cc
|
| Exhaust Port Dimension |
1.770"H x 2.010" W
|
| Exhaust Port Location |
.375" Raised
|
| Combustion Chamber Size(Full CNC) |
112cc
|
| Valve Cover Bolt Pattern |
Perimeter Bolt
|
| Valve Angle |
24°/4° Int, 15°/4° Exh
|
| Valve Spring Pocket Diameter |
1.725" O.D
|
| Max Valve Spring Pocket Machining |
1.750" O.D
|
| Deck Thickness |
.750"
|
| Minimum Bore Diameter |
4.250"
|
| Flat Mill |
.006" per cc/ Maximum 102cc
|
| Angle Mill |
.009" per cc/ Maximum 97cc
|
| Note: Angle mills might require a .120" Thick intake gasket. | |
| Minimum Cross Sectional Area |
2.895 sq. in.
|
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat
|
|
CARB Status: This product is not legal for sale or use on emission-controlled vehicles and intended for dedicated race vehicles only. |
|
| Recommended Components: | |
| Intake Port Gasket | |
| Important: Do not use your AFR gasket as a template to port match your intake manifold as one AFR gasket is used for many AFR runner volumes. | |
| Exhaust Port Gasket | |
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Gasket |
Fel-Pro #1017-1 (Mark IV) or AFR #6850
|
| Head Gasket |
Fel-Pro #1047 (Mark V and VI) or AFR #6849
|
| Head Bolts |
ARP 135-3703 (Mark IV) or AFR #6306
|
| Head Bolts |
ARP 135-3707 (Mark V) or AFR #6308
|
| Head Studs |
ARP 235-4713 or AFR #6307
|
| Head Bolt Washers |
Manley, AFR #6320
|
| Stud Girdle, (AFR Specific) | |
| 7/16 Stud Mount Rocker Arms - 1.7 Ratio (For Optimized Geometry) | |
| 1.7 Shaft Mount Rocker Arms T&D | |
| Shaft Mount Rocker Arms |
Crower or Jesel Pro Series
|
| Suggested Manifold |
Victor Jr
|
| Suggested Manifold | |
| Suggested Manifold |
Air Gap #7561
|
| Spark Plug Starting Range |
Autolite 3924
|
| Note: 1” longer head bolt needed on four bottom exhaust bolt holes. | |
You’ll be first to know about Air Flow Research products, discounts and special events!
